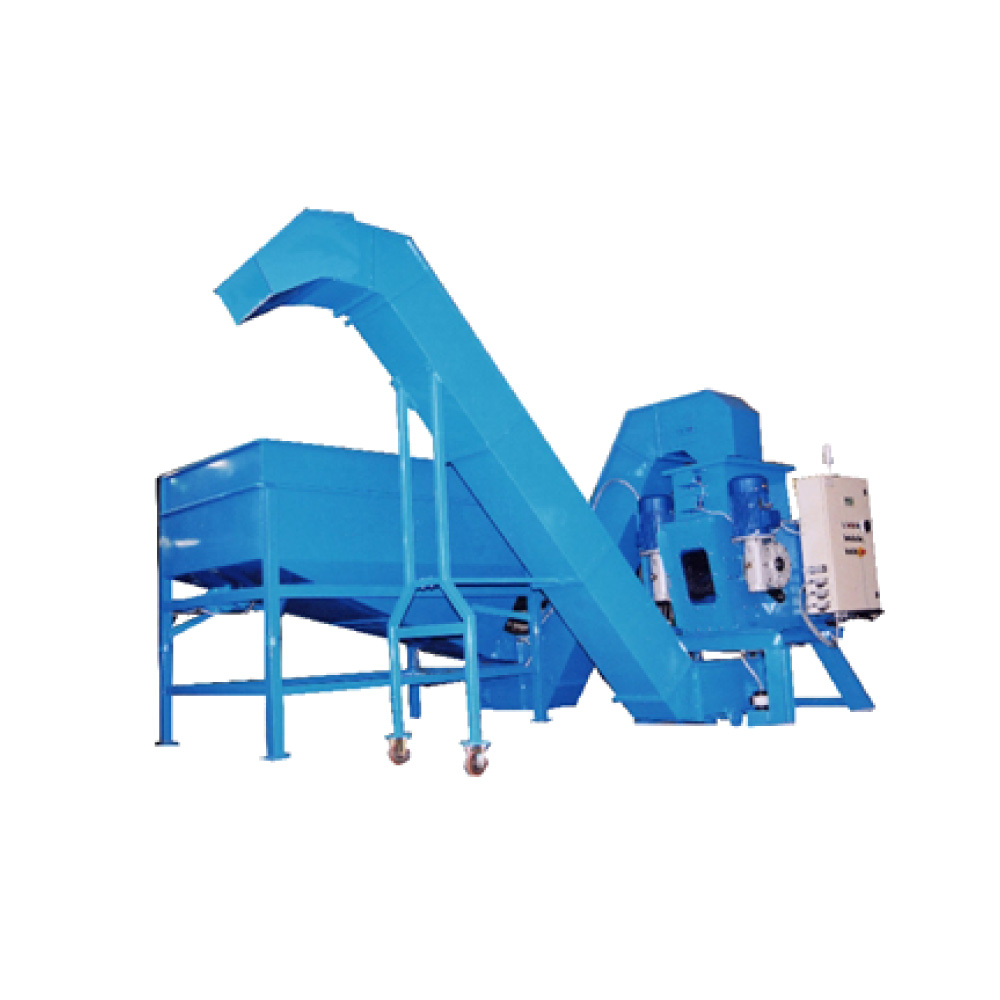

Metal belt conveyors

Backwards Chain Conveyors Metal belt conveyors Plant consisting of a hopper, a mill and two metal belt conveyors. Salmec supplied the mill manufacturer with the hopper and the two swan neck conveyors. The plant was created to shred the shavings and waste resulting from the processing of aluminum, to then send everything to the foundry.

Special transporter 1

Backwards Chain Conveyors Special Transporter 1 Chain conveyor built to customer specifications, suitable for uniformly and precisely conveying workpieces in order to standardise their positioning and simplify the work of operators and robots following the line.

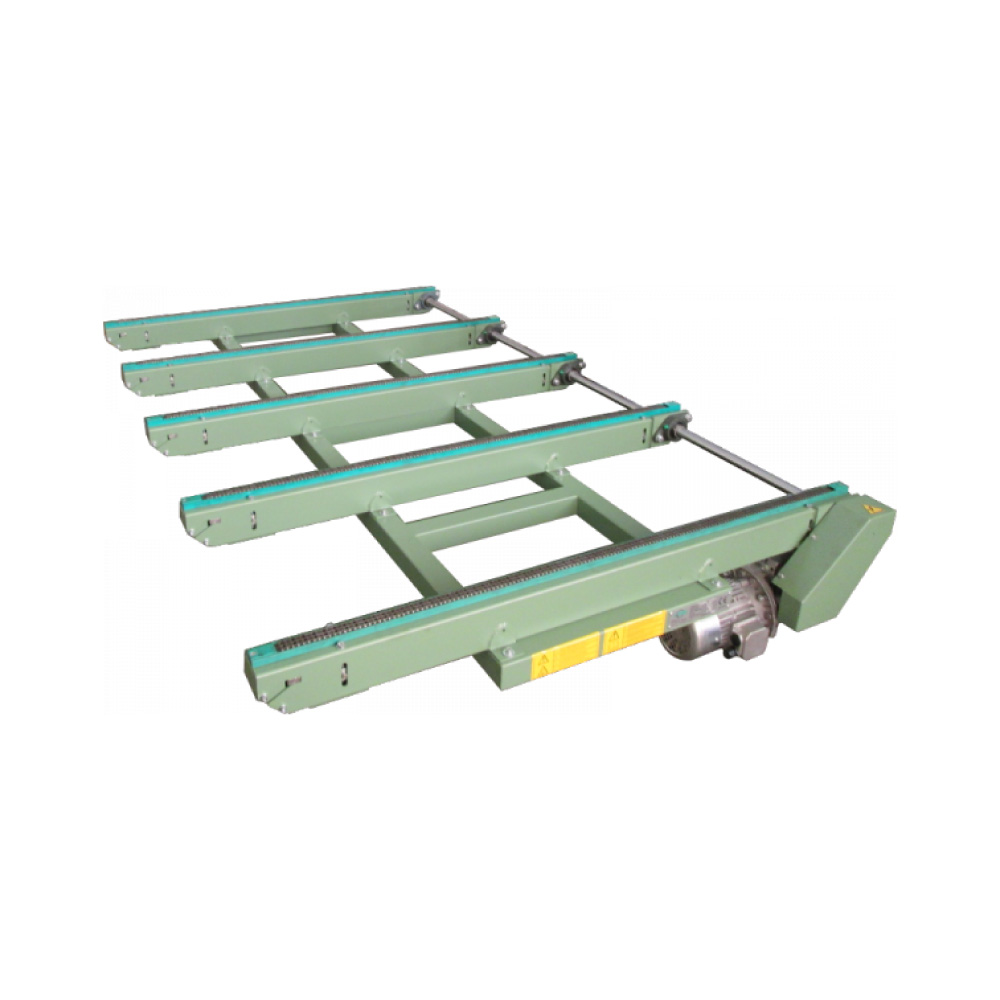

Conveyor Underpress

Backwards Chain Conveyors Conveyor Underpress For the lateral handling of steel sheets, we have designed this conveyor consisting of 5 narrow catenaries driven by a single motor. The whole is positioned on a frame that has been fixed directly into the press that the conveyor will feed.

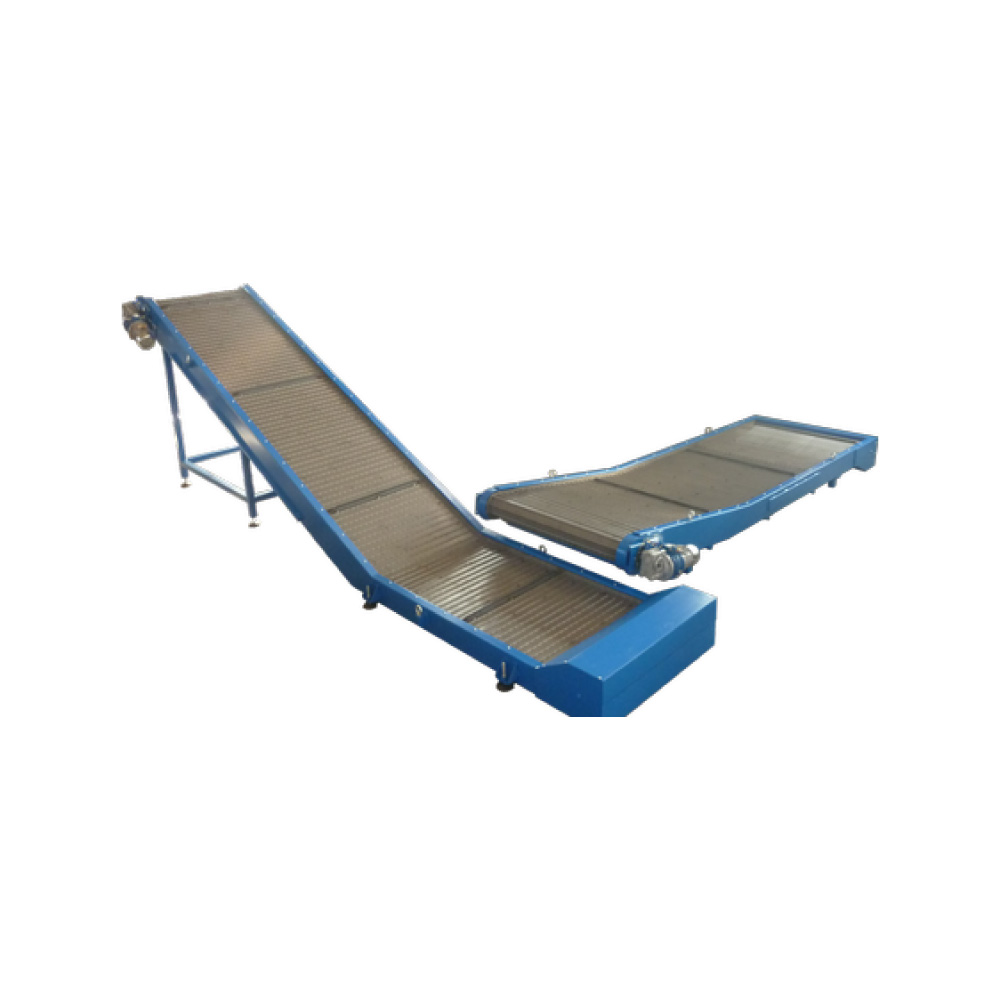

Conveyor with metal belt

Backwards Chain Conveyors Conveyor with metal belt The conveyor in question automates the problem of evacuating swarf and scraps from under the press or machine tool where there is usually little space to put collection bins or other things. The double belt takes the swarf directly to the storage bins.

Conveyor with plastic shutters

Backwards Chain Conveyors Conveyor with plastic shutters A small chain conveyor with plastic slats, designed to be inserted inside small CNC machine tools to evacuate finished parts from inside the machine. The choice on the plastic shutters was due to the fact that small, high-precision workpieces would rest on the belt by falling, with the […]

Single chain conveyor

Backwards Chain conveyors Single chain conveyor Chain conveyor designed to ensure a certain robustness having to withstand high pressures. It is equipped with a tank underneath to hold the oil resulting from production, with a discharge nozzle on one side.

Double chain conveyor

Backwards Chain conveyors Double chain conveyor The chain conveyor in question was supplied to the customer to extend the assembly line. It consists of two coupled lines with several assembly stations, where the trays with the parts are stopped by pneumatic sequencers.

Demountable chain conveyor

Backwards Chain conveyors Demountable chain conveyor The chain conveyor in question was, at the customer’s request, split into two, with two different drives. The special feature of the case is that a path junction is inserted between the two to prevent the workpiece from falling between the two conveyors although they are positioned as close […]

tape-accumulation

Backwards Chain conveyors Accumulation Tape Double accumulation belt, designed to be attached to automatic parallel lathes with two outlets, for machining small parts. Straight belt with aluminium shoulders and S-shaped conveyor, consisting of a chain with plastic slats and polythene shoulders.

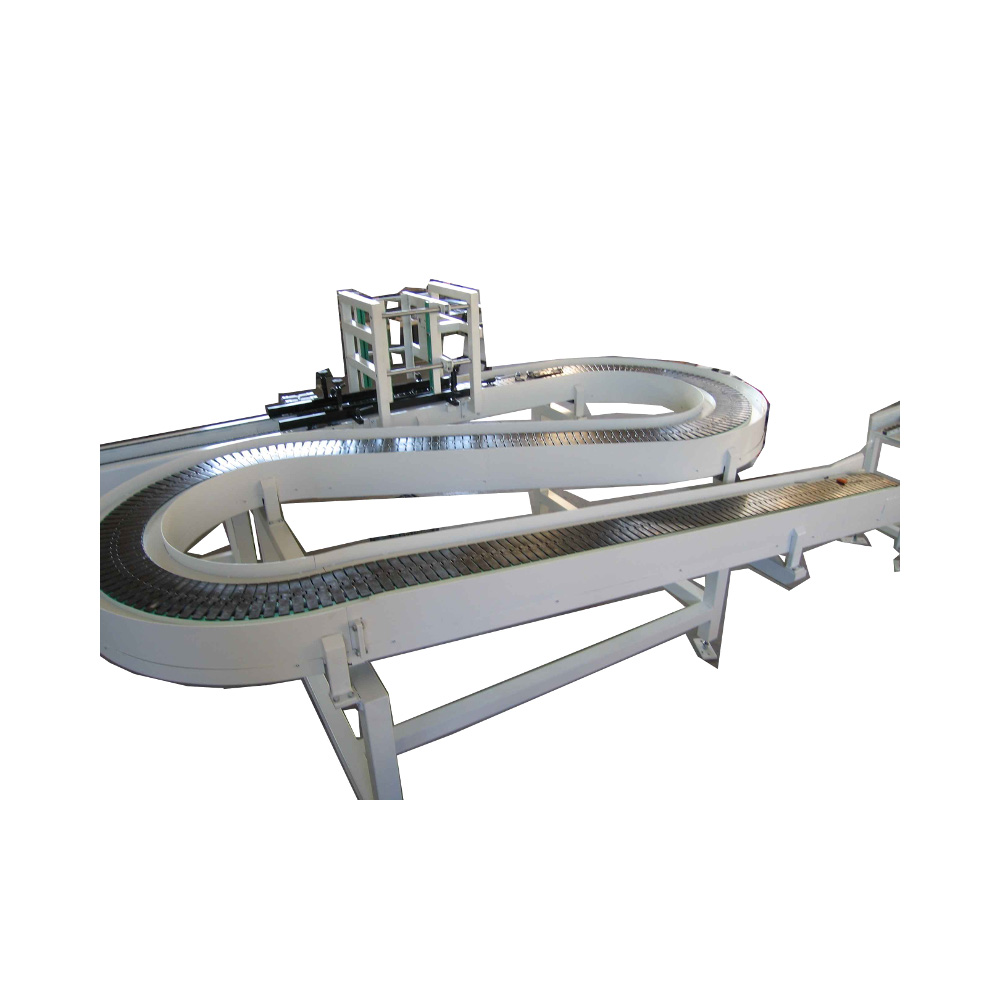

S-shaped pulmonary tape

Backwards Chain Conveyors S-shaped pulmonary tape The S-shaped belt in the photo was produced to act as a buffer belt upstream of a machine tool line. The operator fills the belt with blanks from autonomy to the line for one hour, and the belt, thanks to the sequencer at the outlet, ensures that one part […]
